Bypass

Automatic Transfer

on overload and UPS failure

Before UPS Power-on

Default “NO”, user adjustable to “YES”

Voltage Range

80~264VAC (Default), user adjustable within 80~286VAC

Transfer Time

0 ms; less than 4 ms from inverter to bypass and vice versa

LED indicators

Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault

Audible Alarm

Bypass, On battery mode, Battery low, Overload, Fault

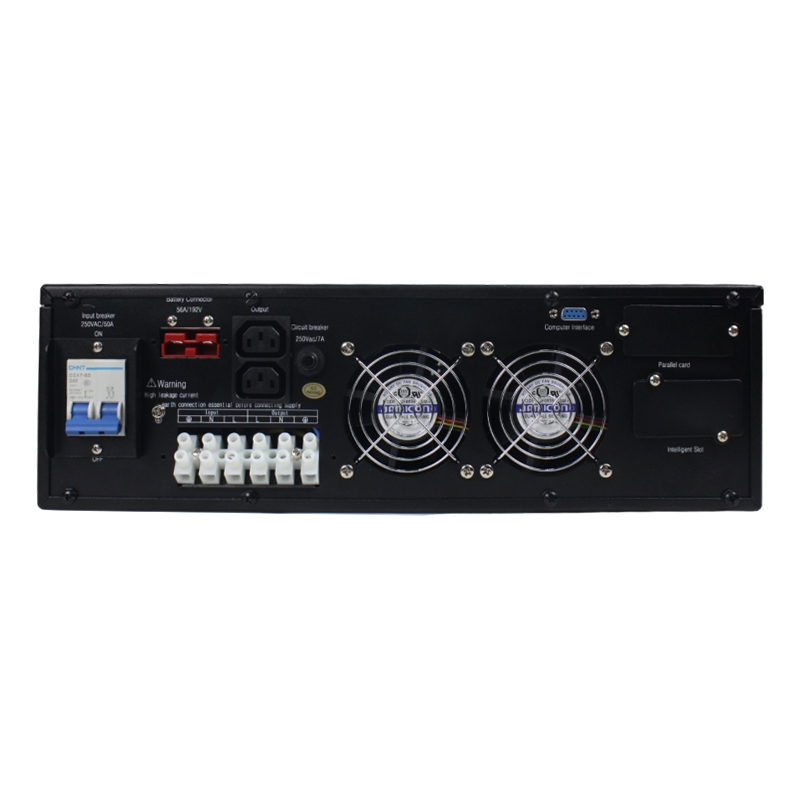

Communications

RS-232 Serial Interface

Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)

Network Surge Protection

RJ45 I/O port available for network or Fax/Modem

Environmental

Operating Temperature

0 ~ 40°C

Operating Humidity

20 ~ 90% non-condensing

Main Unit

Net Weight (Kg)

13.90

7.50

28.50(3U)

8.90

29.60(3U)

10.50

8.50(2U)

10.00(2U)

Dimensions

483*467* 88

483*467*88 (2U)

483*467*88

483* 467*88 (2U)

483* 467*88

(LxWxH) mm

(2U)

484*634*134

(2U)

484*634*134

(2U)

(3U internal batteries)

(3U internal batteries)

Battery Pack

Type

Internal Batteries

External Battery Pack

External Battery Pack

Nominal DC Voltage

36VDC

36VDC

96VDC

Battery Numbers & Capacity

3pcs*12V 7AH

External Battery Pack

8pcs*12V 7AH

External Battery Pack

8pcs*12V 7AH

External Battery Pack

Backup Time

5 min

Depending on the capacity of external battery packs

9 min (with1BP)

Depending on the capacity of external battery packs

5 min (with1BP)

Depending on the capacity of external battery packs
