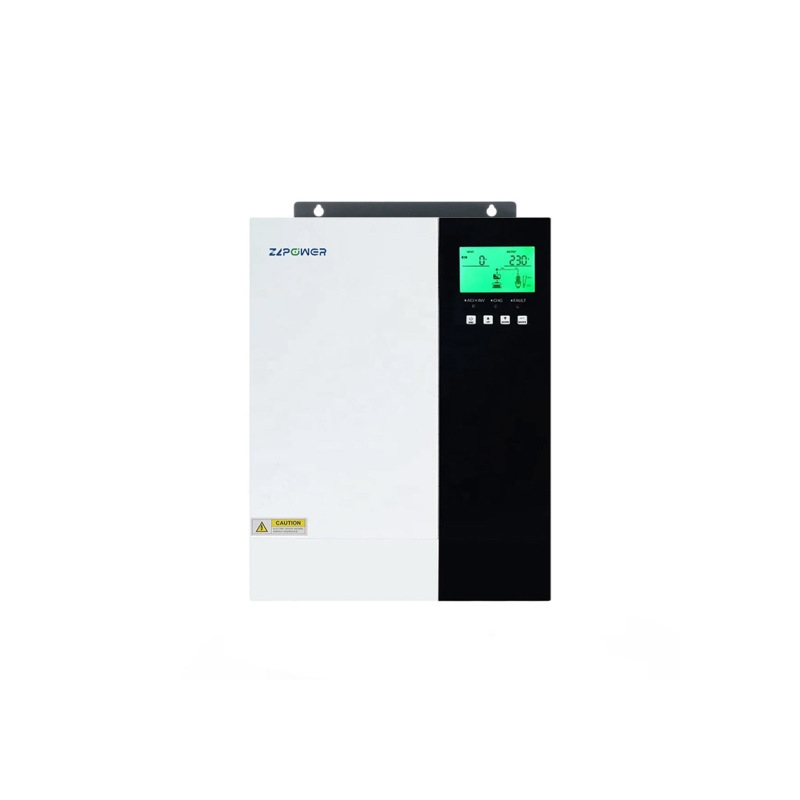

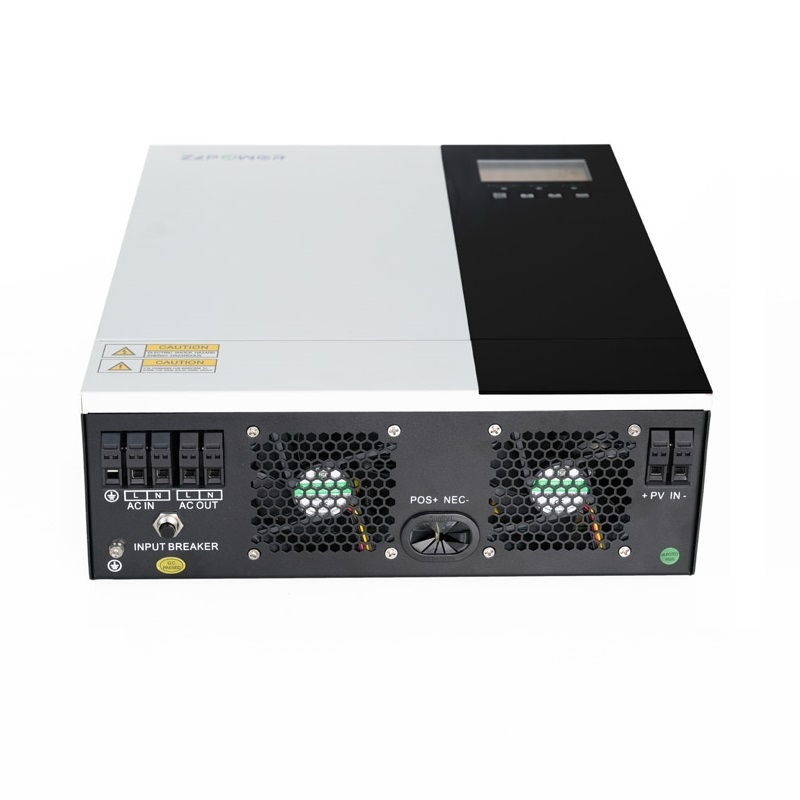

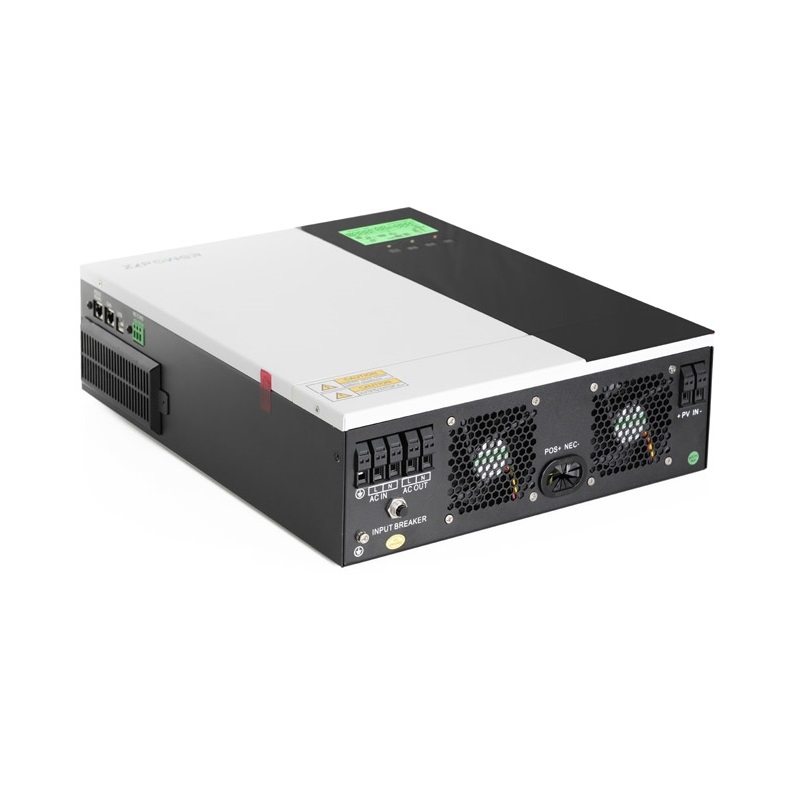

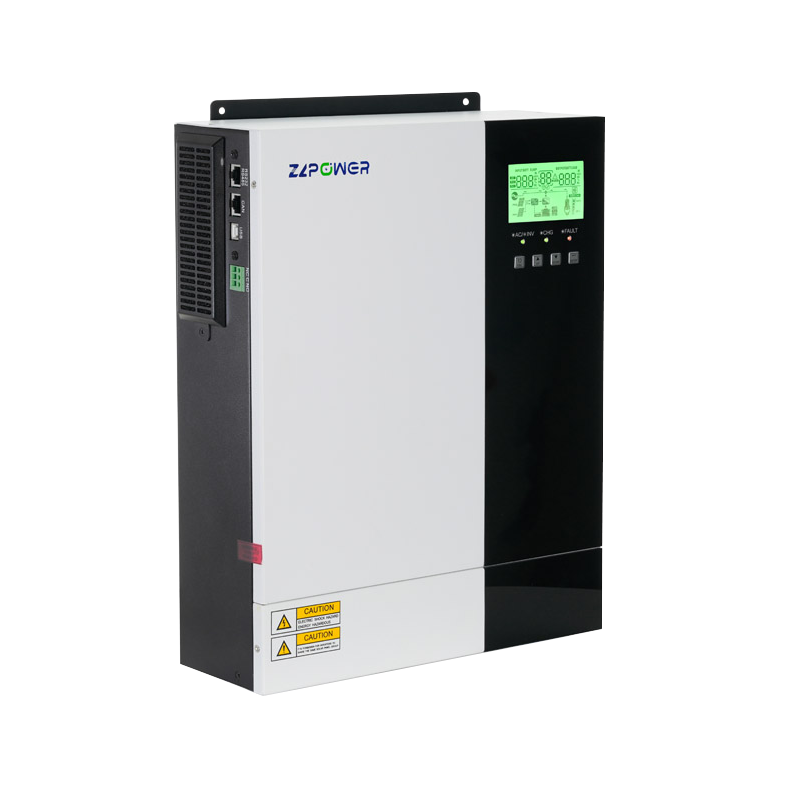

This hybrid 3.5KW, 4KW, 5.5KW, and 6KW solar inverter/charger combines the capabilities of an inverter, solar charger, and battery charger to provide uninterruptible power support in a portable package. Its extensive LCD display provides easily adjustable and accessible button functions, including battery charging current, AC/solar charger priority, and acceptable input voltage that can be customized for various uses. With USB on-the-go function to facilitate data upload/download.
Features
1.Pure sine wave solar inverter
2.High PV input voltage range
3.Battery independent design
4.Built-in 100A MPPT solar charger
5.Battery equalization function to optimize battery
6.performance and extend lifecycle
7.Built-in anti-dusk kit for harsh environment
|
MODEL |
PVM3500-24 |
PVM5500-48 |
|
Rated Power |
3500VA/3500W |
5500VA5500W |
|
INPUT |
|
|
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC (Far Personal Computers) :90-2B0VAC (For Hame Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
OUTPUT |
|
|
|
AC Voltage Regulation(Batt.Made) |
230VAC±5%RMS |
|
|
Surge Powar |
7000VA |
11000VA |
|
Efficiancy(Peak) |
90%-93% |
|
|
Transfer Time |
10ms (For Personal Computers]: 20ms (For Home Applianceg) |
|
|
Waveform |
Pure sine wave |
|
|
BATTERY |
|
|
|
Battery Voltage |
24.0V |
48.0V |
|
Floating Charge Voltage |
27.4V |
54.8V |
|
Overcharge protection |
33.0V |
63.0V |
|
SOLAR CHARGER & AC CHARGER |
|
|
|
Maximum Pv Array Open Circuit voltage |
500VDC |
500VDC |
|
Maximum PV Array Power |
4000W |
5000W |
|
MPPT Operating Voltage Range |
120~450VDC |
120~450VDC |
|
Maximum Solar Charge Current |
100A |
100A |
|
Maximum AC Charge Current |
80A |
80A |
|
Maximum Charge Curent |
100A |
100A |
|
PHYSICAL |
|
|
|
Dimension, L*W*H(mm) |
425x330x117 |
|
|
Net Weight(kgs) |
9.5 |
10.6 |
|

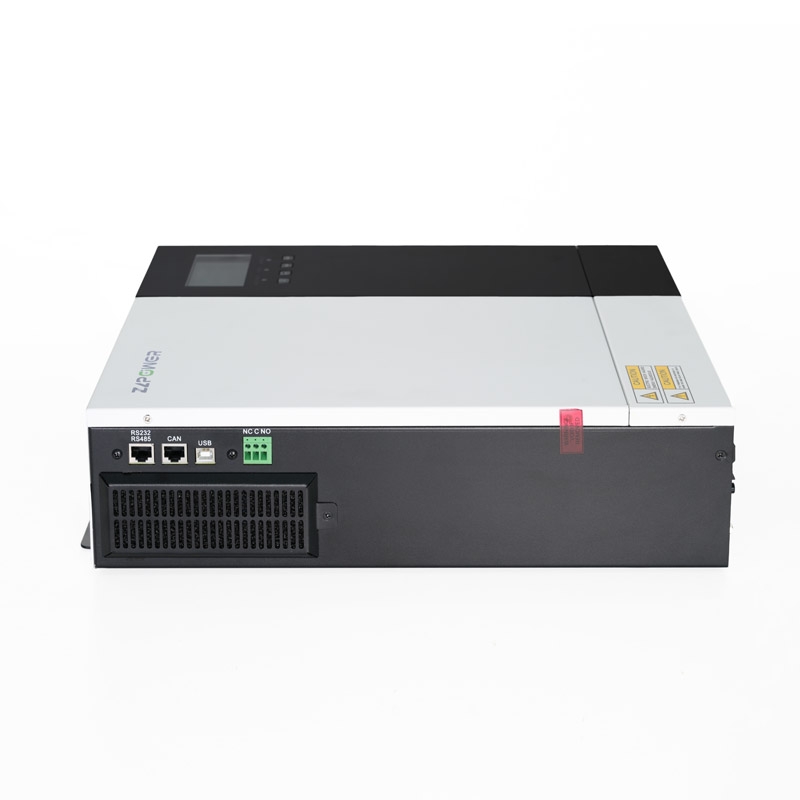

Communication Interlace |
CAN/USB/RS232/RS485Dry contact |
|
|
Storage Tamperature |
-15°C to 60°C |
|
