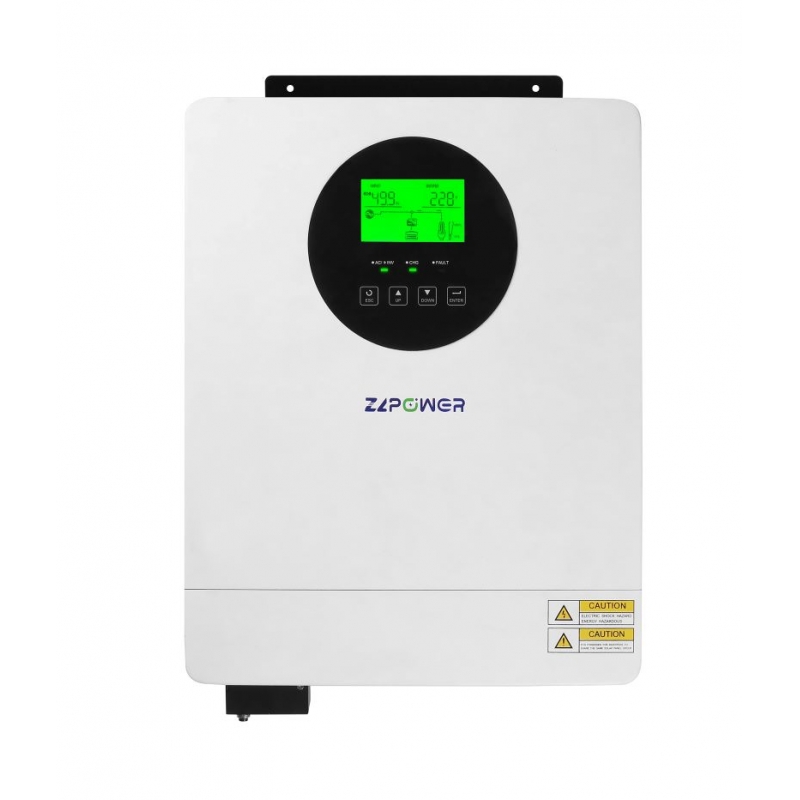

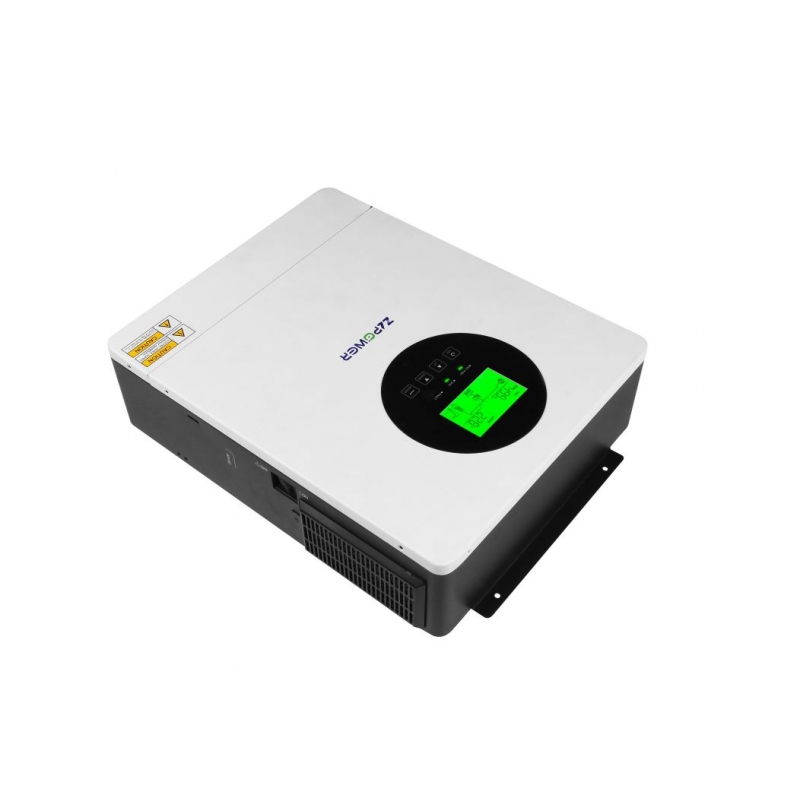

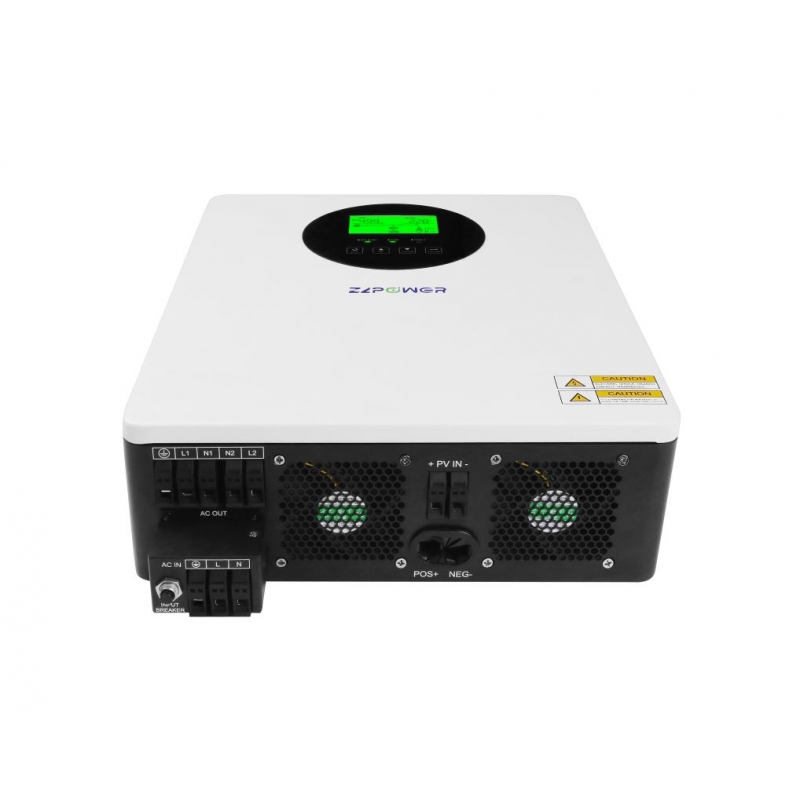

Pure sine wave output, with an output power factor of 1.0. High pv input voltage range designed. Battery Independent Design. Equipped with a built-in 100A Maximum Power Point Tracking (MPPT) solar charger, The dual output function allows you to separate important and unimportant loads, improving the management of your electrical equipment. Critical loads, such as medical devices and computers, can be prioritized, ensuring they receive power first, while less essential devices can be managed accordingly during power shortages.
Features
1. Pure sine wave solar inverter.
2. Output power factor 1.0.
3.High PV input voltage range.
4. Battery independent design.
5.Built-in 100A MPPT solar charger.
6. Battery equalization function to optimize batteryperformance and extend lifecyce.
7. Dual output function, separating important andunimportant loads for better management of electrical equipment
|
MODEL |
PVX3.6K-24V-100A |
PVX3.6K-24V-120A |
PVX5.6K-48V-100A |
|
Raed capacity |
3.6KVA |
3.6KVA |
5.6KVA |
|
Rsted Power |
3.6KVW |
3.6KVW |
5.6KVW |
|
Nominal voltage |
L-N:220/230/240VAC |
||
|
Valtage Range |
90-280VAC(APL);170-280VAC(UPS） |
||
|
Frequency Range |
50Hz；60Hz(self-adaption) |
||
|
The total power of output 1 and output 2 |
3600W |
3600W |
5600W |
|
Voltage(BAT mode) |
L-N:220/230/240（±5%）VAC |
||
|
Frenquency |
50Hz/60Hz(Adjustable) |
||
|
Surga power |
DOUBLE PEAK |
||
|
Efficiency |
≥90%，UP to 96% |
||
|
Wave Form |
Pure sine wave |
||
|
Transfer time |
10ms typical(ups),20ms typical (Appliances) |
||
|
National DC voltage |
24.0v |
48.0v |
|
|
Buck Charging Voltage |
28.2v |
56.4v |
|
|
Floating Charger Voltage |
27.0v |
54.0v |
|
|
Over voltage protection |
33.0v |
63.0v |
|
|
Solar charge type |
MPPT |
||
|
PV Input Max power |
4000W |
5000W |
6000W |
|
PV operating voltage range |
12-450V |
12-450V |
|
|
Max pv Array open circult voltage |
500V |
500V |
|
|
Max solar charging current |
100A |
120A |
100A |
|
Max AC charging Current |
80A |
80A |
|
|
Dimension L*W*H(mm) |
460.6*332.0*115.0 |
||
|
Net weight(kg) |
9.0 |
9.5 |
10.3 |
|
Communication interface(Optional) |
RS232/CAN/Dry-contact |
||
|
Operating humidity |
0% to 90%(non-condensing) |
||
|
Oprating Tempurature |
-10℃ to 50℃ |
||
|
Storage tempurature |
-15℃ to 60℃ |
||
|
Safety compliance |
CE |
||
