MODEL

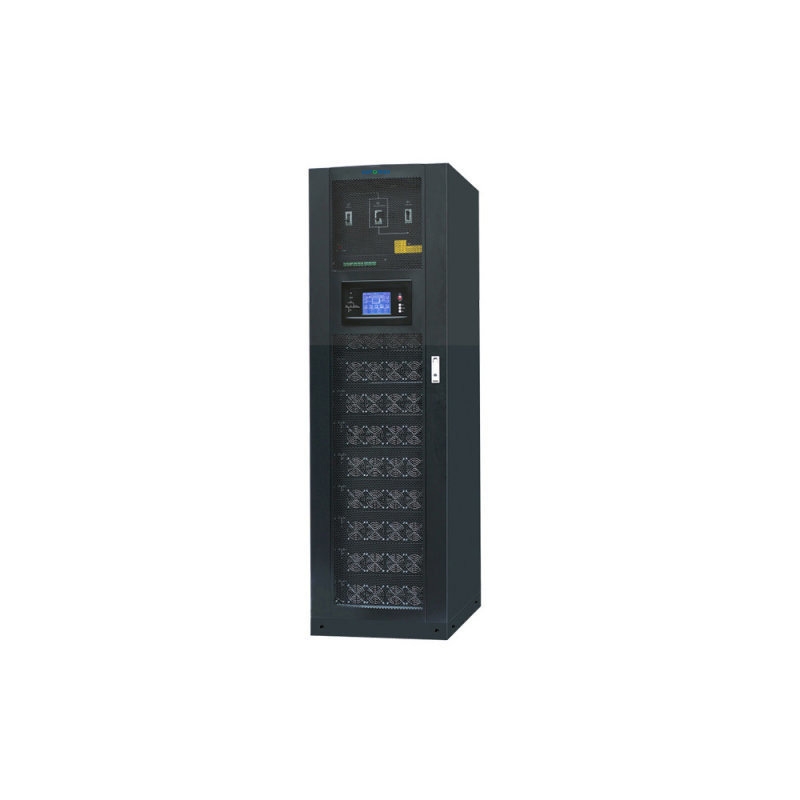

92M200/20X

92M120/20X

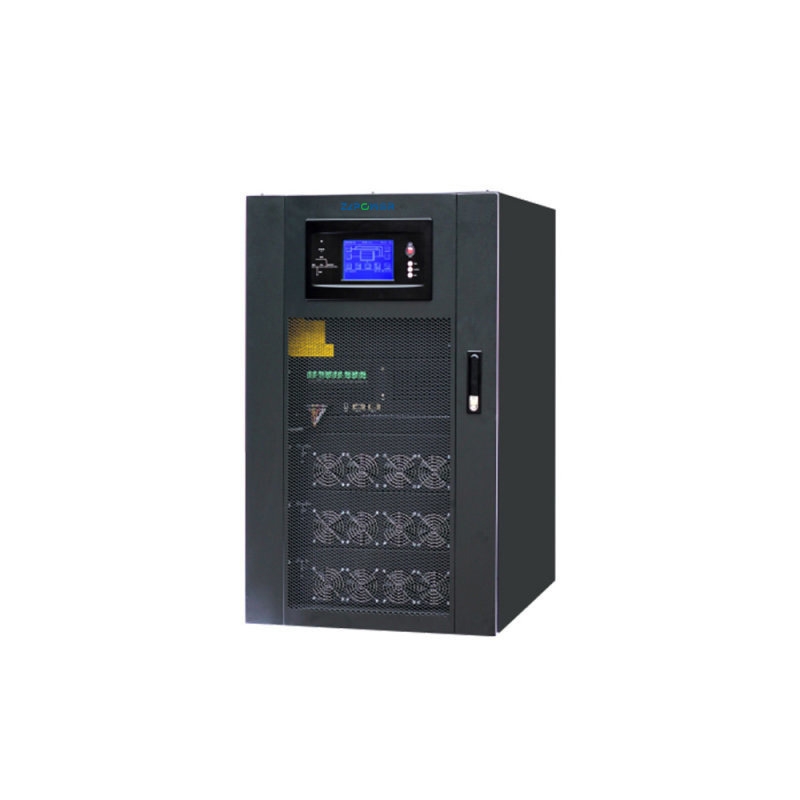

92M60/20X

System Capacity

200kVA

120kVA

60kVA

Power Module Capacity

20kVA/18kW

Input

Dual Input

Optional

Phase

3 Phase+Neutral+Ground, 380V/400V/415V(line-line)

Input Voltage Range

304~478Vac (line-line),full load;
228V~304Vac (line-line),load decreases linearly according to the min phase voltage

Rate Frequency

50/60Hz

Bypass


Input Frequency Range

40Hz～70Hz

Input PF

>0.99

Input THDi

<3% （100% Linear load）

Rate Voltage

380/400/415Vac (line-line)

Rate Frequency

50/60Hz

Output

Input Voltage Range

Settable, -40%～+25%

Bypass Frequency Range

Settable, ±1Hz, ±3Hz, ±5Hz

Bypass Overload

125% long term operation; 130% for 1 hour ;150% for 6 mins; 1000% for 100ms

Rate Voltage

380/400/415Vac (line-line)

Voltage Regulation

1% for balance load; 1.5% for unbalance load

Battery

Rate Frequency

50/60Hz

Frequency Precision

0.1%

Output PF

0.9

Output THDu

<1% , Linear load; <5.5%, Non-linear load

Crest Factor

3:1

Inverter Overload

110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms

Voltage

±240Vdc

Battery Number

40pcs (Settable: even number from 32 to 44)

Voltage Precision

±1%

Charge Power

up to 20% * Output active power

Battery Cold Start

Standard

Efficiency

AC Mode

95.0%

ECO Mode

99.0%

Battery Mode

95.0%

System

Display

5.7" touch screen LCD + LED + keyboard
