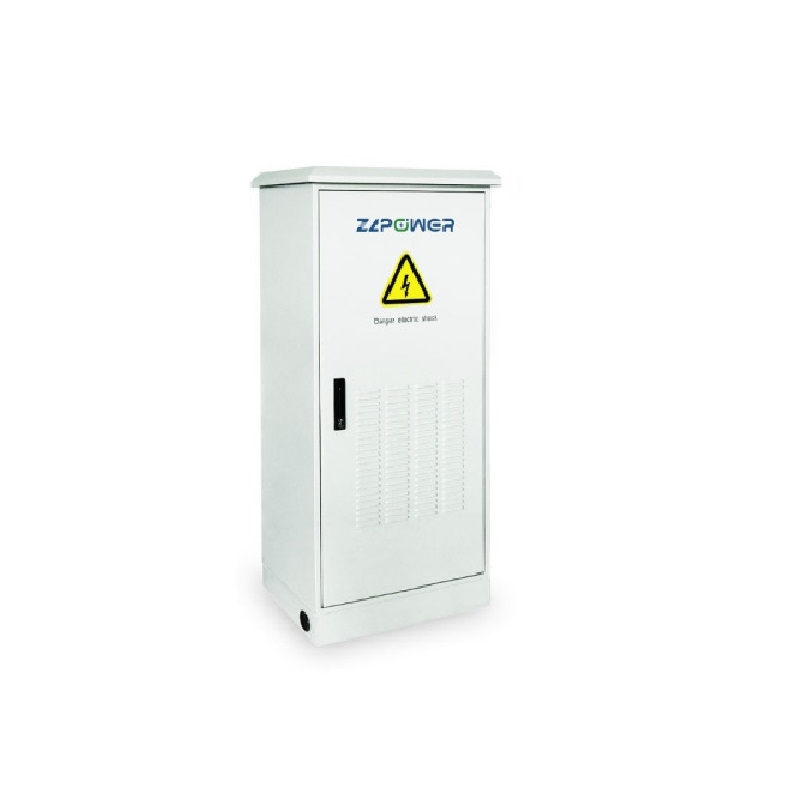

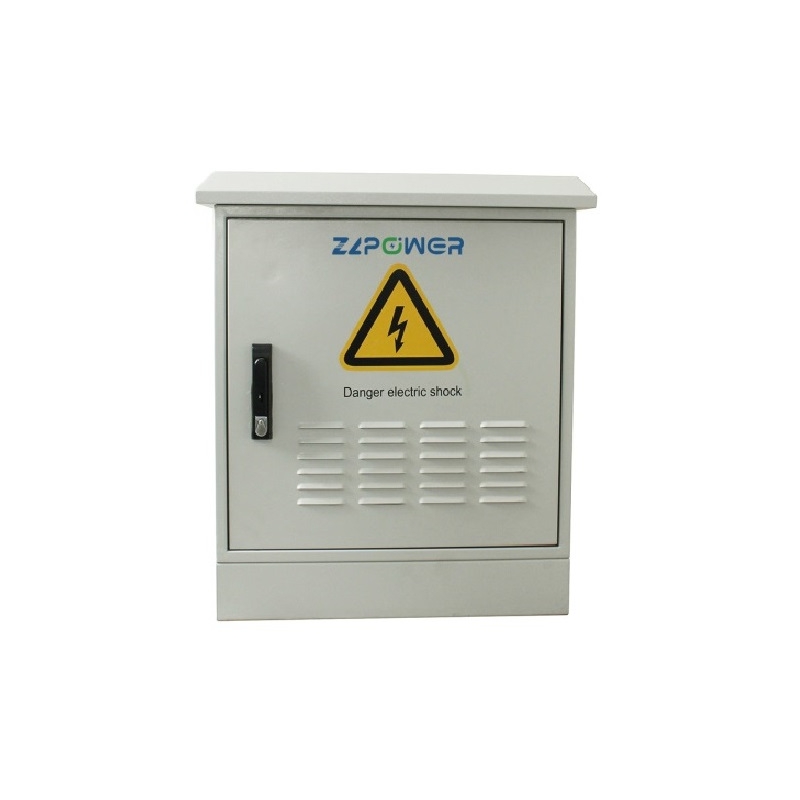

RA series IP65 High frequency outdoor UPS is used In suburban district, remote road or mountain, severe environment such as areas with high temperature(50℃), severe dust, moisture, rain, mist erosion, poor grid power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change)
Features:
1.Provides a pure uninterrupted AC sine wave power supply for the outdoor communication / network equipment.
2.The use of high temperature, anti cold, salt spray, anti-corrosion, anti dust, waterproof, lightning protection design.
3.Advanced MCU micro processor control Technology, ensure long life reliability.
4.Excellent Protection against over voltage, overload, over current, overcharge and so on.
5.Strong anti-jamming capacity, Lightning, surge, short-circuit, network/fax/modem surge protection. Input L and N lines reverse wiring detection.
6.DC start function, input RFC reuses function.
7.Humanized bypass output adjustable.
8.Available to work with generators.
|
Model |
RA1KL |
RA2KL |
RA3KL |
|
|
Capacity |
VA/W |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
|
Input |
Nominal Voltage |
110/115/120VAC or 200/220/230/240VAC 200/208/220/230/240VAC |
||
|
Voltage Range |
115～300VAC |
|||
|
Power Factor |
≥0.97 |
|||
|
Frequency Range |
50Hz:46~54Hz; 60Hz:56~64Hz |
|||
|
Output |
Voltage |
110/120/220/230/240(1±2%)VAC |
||
|
Frequency |
50/60Hz (Adjustable); 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%) |
|||
|
Wave Form |
Pure sine wave |
|||
|
Power Factor |
0.8 |
|||
|
Harmonic Distortion |
≤3% THD (Linear load) |
|||
|
Overload Capacity |
110%～150% maintain 30s then turn to bypass ourput; |
|||
|
Current Crest Ratio |
3:1 |
|||
|
Connections |
Terminal block |
|||
|
Efficiency |
Battery Mode |
83% |
||
|
AC Mode |
85% |
|||
|
Battery |
Type |
Sealed free maintenance lead acid battery |
||
|
Nominal DC voltage |
36VDC |
96VDC |
96VDC |
|
|
Stansard Battery Cabinet |
3*100AH |
8*100AH |
8*100AH |
|
|
Backup Time (Full Load) |
Depens on the capacity of internal battery bank (24AH,38AH,65AH,80AH and 100AH optional) |
|||
|
Charge Current (Max) |
6.0A |
6.0A |
6.0A |
|
|
Charge Voltage (VDC) |
41.1V±0.2VDC |
110V±0.6VDC |
110V±0.6VDC |
|
|
Recharge Time |
Depends on the capacity of internal battery bank |
|||
|
Bypass |
Automatic Transfer |
On overload and UPS failure |
||
|
Before UPS Power-on |
YES |
|||
|
Transfer Time |
|
0 ms(from imain to battery and vice versa); Less than 4ms from inverter to bypass and vice versa |
||
|
indicators |
LCD Display |
UPS status, Battery capacity, loading, Fault code (LCD: I/P ＆O/P voltage＆frequency, Battery voltage) |
||
|
Audible |
|
Bypass, Battery mode, Battery low, Overload, Fault |
||
|
Communications |
Intelligent RS232 serial port |
Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC |
||
|
SNMP (Optional) |
Remote control UPS through SNMP management and Internet |
|||
|
USB (Optional) |
Windows family software and Mac OS |
|||
|
Environmental |
Operating Temperature |
0~40℃ |
||
|
Operating Humidity |
||||
