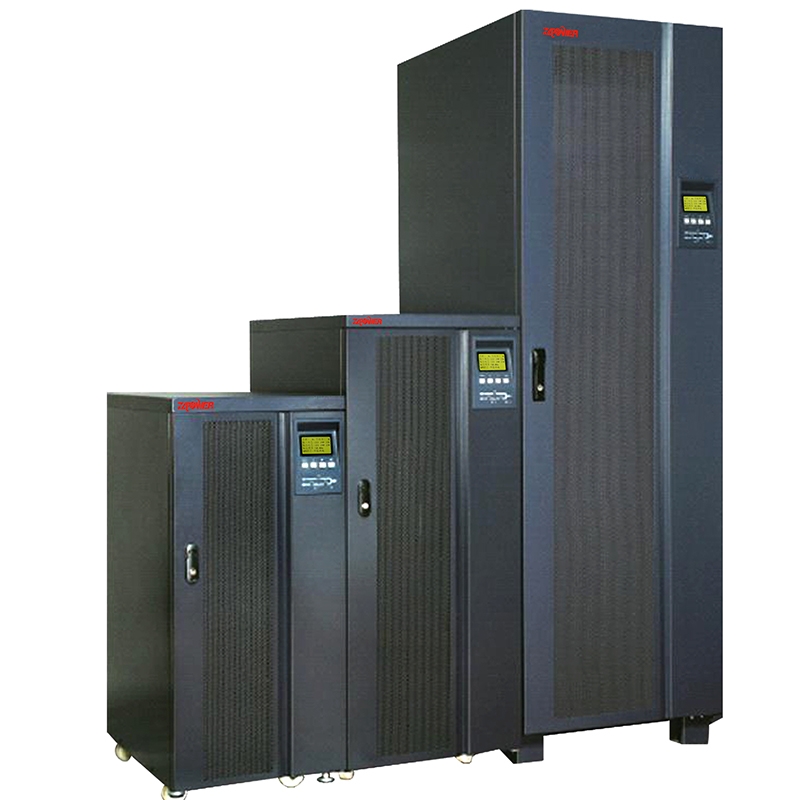

EX3320K-EX3380K Online UPS High Frequency UPS

Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA,

Three phase 4line and ground, 0.8 output power factor and DSP chip,

is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises,

or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.

Features:

1.High frequency on-line double conversion technology

2.Advanced dual-core DSP control technology and 3-level technology

3.Active power factor correction (APFC), input power factor up to 0.99

4.System efficiency is improved to 95%, energy saving rate is doubled

5.Dual input design, supporting independent bypass

6.Advanced digital and parallel technology, providing higher reliability than single system

7.Wide input voltage range

8.50 / 60 Hz auto-sensing frequency

9.Work efficiency up to 98% in ECO mode

10.Fan speed varies intelligently with load, reducing noise and extending its service life

EX3320-80k UPS

Description

Model		EX3320K	EX3330K	EX3340K	EX3360K	EX3380K
Rated Capacity		20KVA/16KW	30KVA/24KW	40KVA/32KW	60KVA/48KW	80KVA/64KW
Input	Voltage	210-475VAC
	Frequency	40-70Hz

	Phase Line	Three-phase 4 line + earth line
	THDI	<3%
	Input Power Factor	>0.99
	Twin-channel Line Input	Yes
Battery	Type	Valve-regulated lead-acid storage battery
	Standby Time	Depended by external battery bank
Output	Voltage	380VAC / 220 VAC
	Frequency	50/60Hz
	Phase line	Three-phase 4 line + earth line
	Rated output power factor	0.8
	Overload Capacity	125% maintain 10minutes
		150% maintain 1minutes
Efficiency	Line Input Mode	93%			94%
	BAT Mode	93%			94%
	ECO Mode	98%
Intelligent Speed Control of Fan		yes

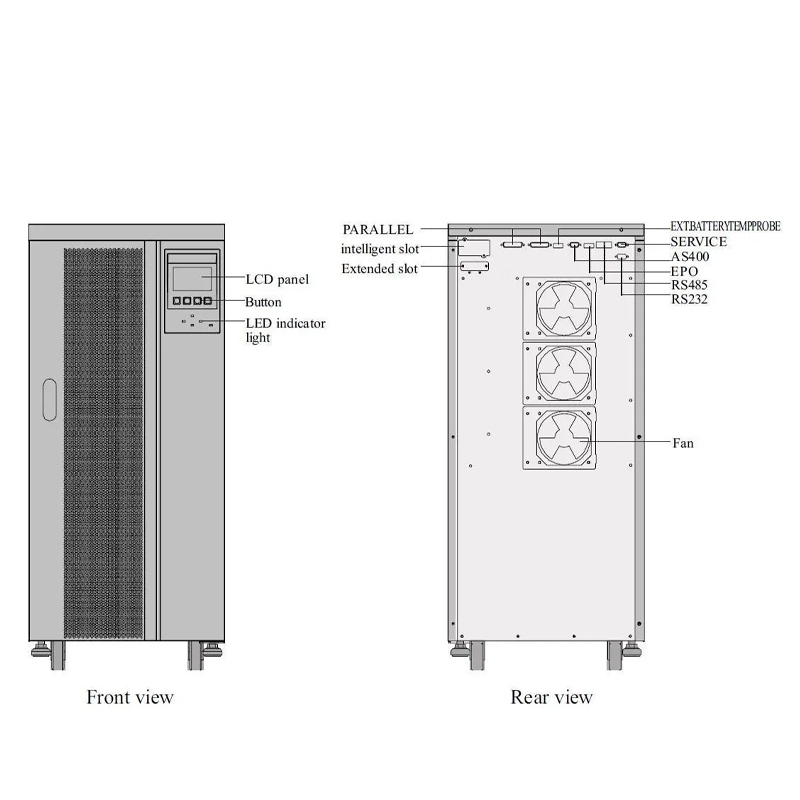

Display Device	LCD	I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning
	LED	The operation state of UPS
Warning Devices		Two ways of alerting: BUZZER sound, lamp signal,
Communication Interface		RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot
Operation	Temperature	0-40℃
Environment	Humidity	<95% (non condesing)
Weight	Net weight(include transformer)	82Kg/208Kg	110Kg/275Kg	114Kg/314Kg	282Kg	306Kg
	Gross weight(include transformer)	122Kg/248Kg	160Kg/325Kg	164Kg/364Kg	356Kg	380Kg
*Dimension LWH（mm）*		643×420×925	710×470×1150		800×600×1850
