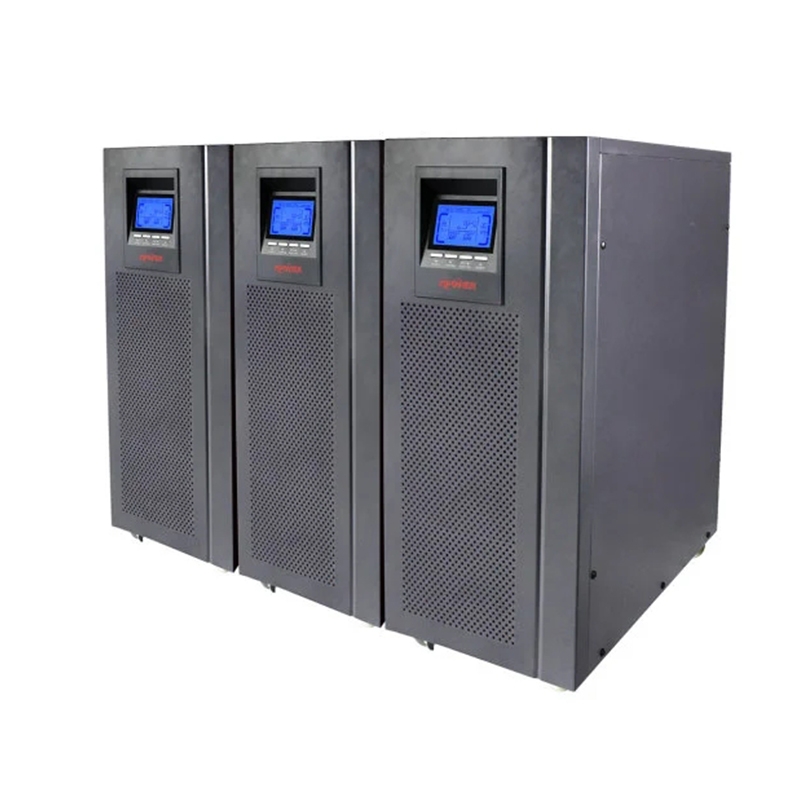

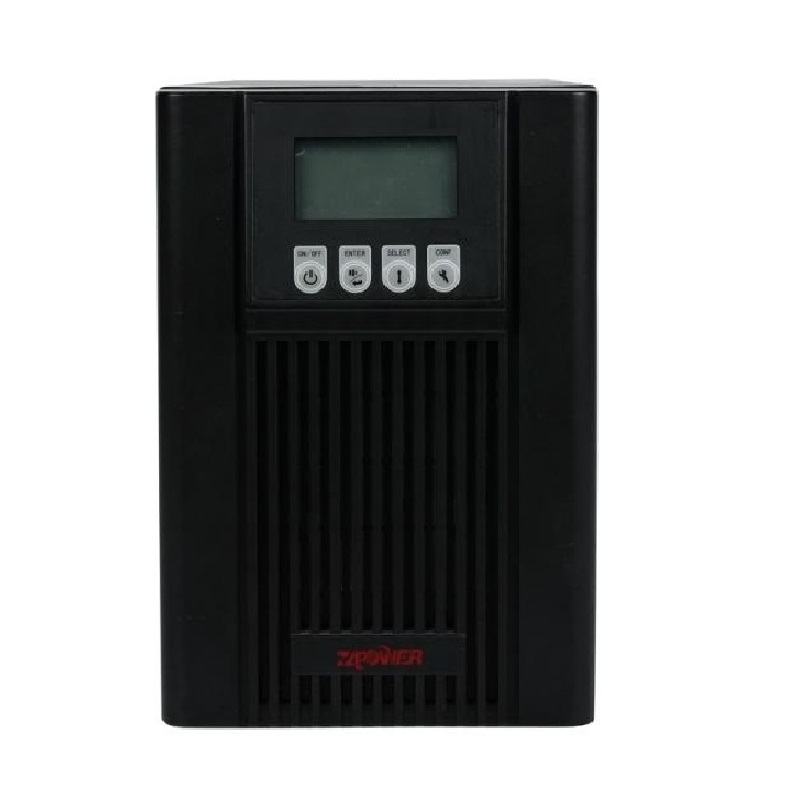

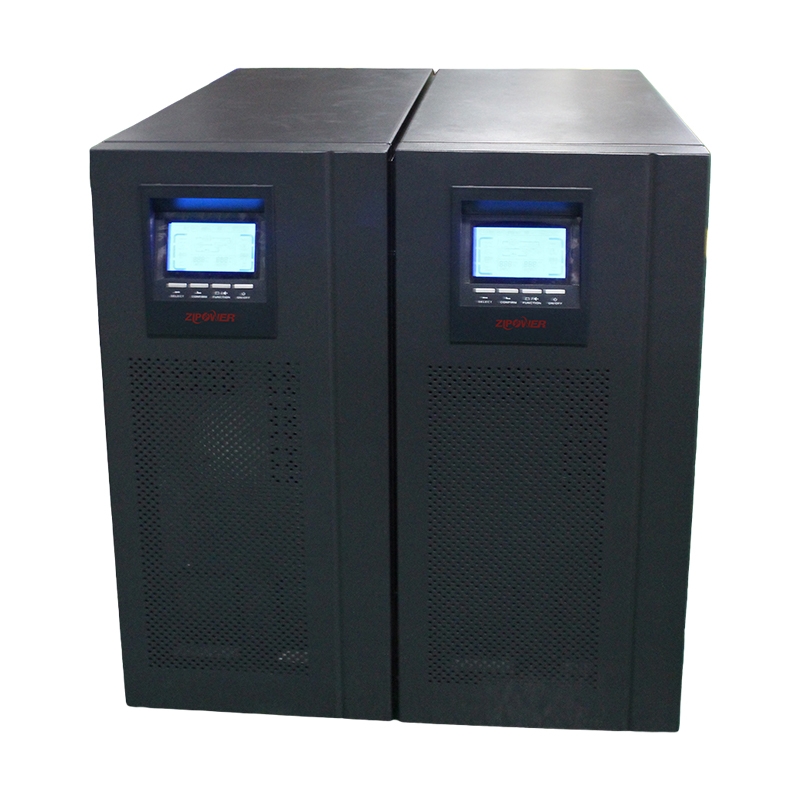

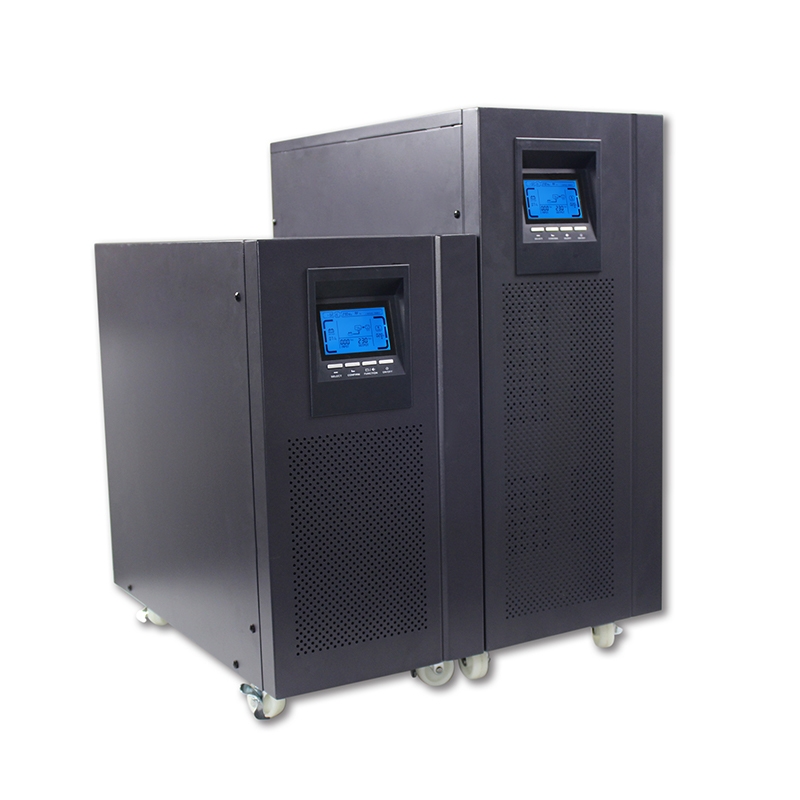

EX6KVA-10KVA Online UPS High Frequency UPS
EX6K-EX10KLUPS is a powerful product range with high adaptability and flexibility.
 Its cut-edge digital control technology of DSP (Digital Signal Processor),
can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.
Meanwhile, this uninterruptible power supply is especially tailored for all customers’ personalized demands to provide powerful scalable functions. The unit can be flexibly configured on user‘s demands.
Application:
Servers, data center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Main Features:
1. Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters
2. Output Voltage, Frequency parameter and bypass function can be set via the display
3. Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability
4. 192vdc battery input voltage
5. Wide input AC voltage range, Zero transfer time
6. True online double conversion technology
7. N+X Parallel Redundancy
8. Excellent Protection against over voltage, over load, over current, over charge and so on
9. Input L and N lines reverse wiring detection, Auto start when AC back
10. DC start function, Input PFC revise function
11. Humanization bypass output can be adjustable
12. Smart RS232 communication with monitoring software
13. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14.Available to work with generators
15. Lightning, surge, short circuit, Network/fax/modem surge protection
Description

 MODEL

EX6K

EX10K

EX6KL

EX10KL

Capacity

VA/W

6000VA/4800W

10KVA/8000W

6000VA/4800W

10KVA/8000W

Input

Nominal Voltage

208/220/230/240VAC

Voltage Range

120～275VAC

Frequency Range

50/60Hz (Adjustable); 50Hz:46～54Hz ; 60Hz:56～64Hz

Phase

Single phase with Ground

Power Factor

≥0.97

Output

Voltage

208/220/230/240*(1±1%) VAC

Frequency

50/60Hz (Adjustable); 50Hz AC Mode: Follow AC, Battery Mode: 50Hz  (1±0.2%)  /                   60Hz AC Mode: Follow AC, Battery Mode: 60Hz (1±0.2%)

Wave Form

Pure sine Wave

Power Factor

0.8

Harmonic Distortion

≤2% (Linear load); ≤6% (Non-Linear load)

Overload Capacity

Load﹤105% work consistant; 105%≤load﹤125% 1min; 125%≤load﹤150% 30sec

Current Crest Ratio

3∶1

Connections

Terminal block

Efficiency

Battery Mode

87%

AC Mode

88%

Battery

Type

Sealed free maintenance lead acid battery

Nominal DC Voltage

Built in batteries 12V7.0AH

192 VDC

Quantity

16 PCS

Back-up Time(Full load)

≥4 minutes

≥3 minutes

Depends on requested Back-up time

Recharge Time

7 hours to 90%

Depends on capacity of external battery bank

Charge Current(Max)

1.0 A

4.5A

Charge Voltage

219.5Vdc±1%

Bypass

Automatic Transfer

On overload and UPS failure

Transfer Time



Zero

Indicators

LCD Display

UPS status, I/P＆O/P voltage＆frequency,Battery voltage, Battery capacity, Loading, Fault code
