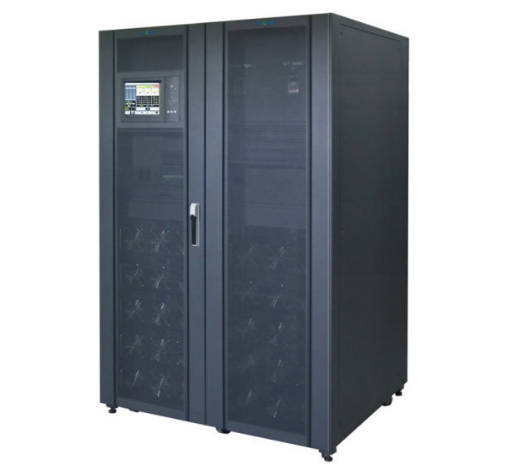

There are many benefits of UPS systems that are Modular type over traditional types of UPS. They are built with growth in mind, allowing for easy scaling to match increasing power requirements. That flexibility is enabled by the hot-swappable capability to add or remove power modules without needing to take operations down. Furthermore, the presence of N+X redundancy in modular UPS systems ensures that the UPS does not go down and continues to work even in case of any single module failure. Using an independent charger with intelligent control for each module, the charging process can increase the life of the battery and improve the overall efficiency of the system.
1. Power Modules: These are the core components that can be added or removed to scale the system‘s capacity.
2. Independent Chargers: Each module has its charger, which manages the charging process efficiently.
3. LCD Display: Provides real-time data and alerts in multiple languages for user convenience.
4. Communication Ports: Options include RS232, SNMP, and dry-contact ports for seamless integration with monitoring systems.
5. Battery Cold Start Feature: Allows the UPS to be powered on from the battery without utility power.
Modular type UPS systems are versatile and suitable for various applications across different industries. They are particularly beneficial in data centers where scalability and reliability are critical. The ability to add or remove modules without interrupting operations makes them ideal for environments with fluctuating power demands.
Furthermore, these systems are used in telecommunications, healthcare facilities, and financial institutions where uptime is crucial. Their high efficiency and advanced monitoring capabilities ensure that sensitive equipment remains protected from power disturbances.
Customary UPS systems have for some time been an answer for deterrent power. A traditional server is generally one unit with a set capacity and a fixed scaling option. Conventional systems normally comprise a status monitoring section with LED or LCD and are often provided with alarms with the help of buzzers to alert in the early stage.
One of the biggest drawbacks of traditional UPS designs is their non-modular form factor, which means they are not nearly as scalable as modular designs. Many scaling approaches require the entire unit to be replaced instead of simply adding modules when scaling the storage, so once installed, this limits further capacity expansion. Modular types could lack redundancy seen in traditional systems by going down all at once during maintenance or failure, leading to more expensive downtime.
They are still the best choice for traditional UPS systems, those with fixed power demands and no immediate need for scalability. You usually find them in small offices or residential applications where the challenges of having a fixed-capacity system, as opposed to a modular flexible solution, are less than its simplicity and lower cost.
|
Feature |
Modular Type UPS |
Traditional UPS |
|
Scalability |
High; modules can be added/removed easily |
Low; requires replacement for expansion |
|
Redundancy |
N+X redundancy available |
Limited redundancy |
|
Maintenance |
Hot-swappable modules minimize downtime |
Maintenance can lead to downtime |
|
Efficiency |
High; smart sleep function optimizes usage |
Standard efficiency |
|
Space Utilization |
Compact design saves space |
Typically larger footprint |
|
Application Flexibility |
Ideal for dynamic environments |
Suitable for static environments |
For all these, ZLPOWER has made use of modular-type UPS benefits in design, they are your good stable friend in modern digital and power quality management. High power density and independent LCDs per module for real-time monitoring and intelligent charging management (to extend battery life) are among their products estate. It can keep that battery alive smart by using their products which have high power density; Each module/pack has an LCD independently, allowing constant real-time monitoring of Battery status.
In the end, modular type and traditional UPS systems each have their strengths and applications. Nonetheless, modular-type UPS systems are a strong alternative worth considering by businesses seeking to future-proof their infrastructure with scalable, efficient solutions.
In recent years, modular-type UPS technology has seen significant advances, making them more attractive than conventional systems. To which innovations on the list can we add high power density designs to keep the footprint compact, but with lots of power? As an example, the 93M Series from ZLPOWER achieves a power density of 409kW/m² to use valuable data center space efficiently. With 30 power modules in parallel, the solution scales from 30 kVA to 900 kVA, providing an unrivaled level of flexibility to a developing business.
Likewise, plenty of advancements have been made in battery tech, which has a tremendous influence on the UPS system‘s performance and reliability. Intelligent charging management systems that control the entire charging and discharging process, thereby improving battery life and overall system efficiency, are now standard features of modern modular UPS solutions. At ZLPOWER, we have adopted these technologies in our modular UPS models, increasing the long-term reliability and decreasing the maintenance needs of the equipment.
The further development of UPS systems integrated with renewable energy sources is one of the technological breakthroughs. More modular-type UPS systems are designed for interconnectivity with solar panels and other renewable energy inputs. This feature not only lessens dependence on traditional grid electricity but also works towards sustainability targets by reducing carbon footprints. Such carbon-neutral tools are taken advantage of by modular systems, given their readiness to connect new solutions.
When deciding between modular type and traditional UPS systems, several factors should be taken into account:
· Scalability Needs: If future expansion is anticipated, a modular system‘s scalability might be beneficial.
· Redundancy Requirements: For critical applications requiring high availability, the N+X redundancy of modular systems is advantageous.
· Space Constraints: Compact modular designs can save space compared to bulkier traditional units.
· Budget Considerations: Initial costs versus long-term benefits should be evaluated; while modular systems may have higher upfront costs, they often offer savings through efficiency and reduced downtime.
A modular-type UPS can make a lot of difference in terms of long-term profitability. This offers a lower total cost of ownership via less energy and maintenance costs, in addition to minimal downtime with hot-swappable modules. This speed of adaptation to dynamic power needs with minimal infrastructure changes also prepares enterprises for future scalability.
ZLPOWER is one of the few manufacturers on the market to cover the complete modular type UPS spectrum especially designed for industrial applications. The 92M Series and 95M Series are examples of the best of the best in cutting-edge design, with independent LCDs for every module, smart sleep features that conserve efficiency by disabling unneeded modules when demand is low, and multi-language human interfaces to support international applications.
Apart from their modular options, ZLPOWER also has online UPS systems available for certain applications such as server rooms or outdoor uses. In particular, their RM series high-frequency rack mount online UPS is worthy of mention with its ‘space saver‘ design and provision for overvoltage and overload protection. The RA Series outdoor online UPS, for example, also delivers IP65-rated protection from harsh environmental conditions and is ideal for deployment in rural, remote installations.
ZLPOWER is committed to innovation which allows ensuring the competitive edge for the solutions it offers in power management. They remain steadfast in supporting numerous businesses in meeting the power continuity needs, with options for diverse operational processes.
