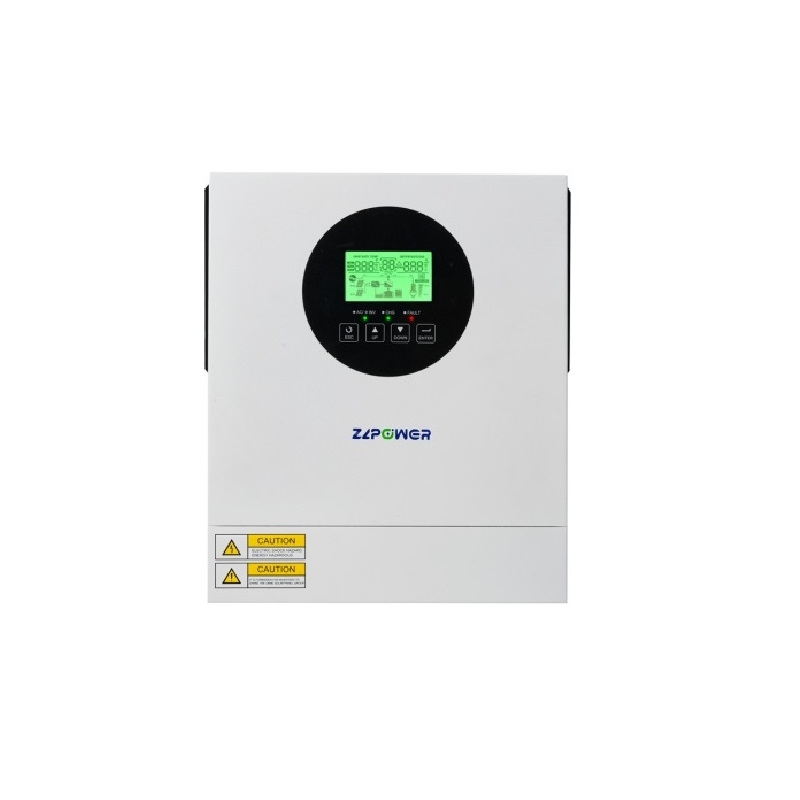

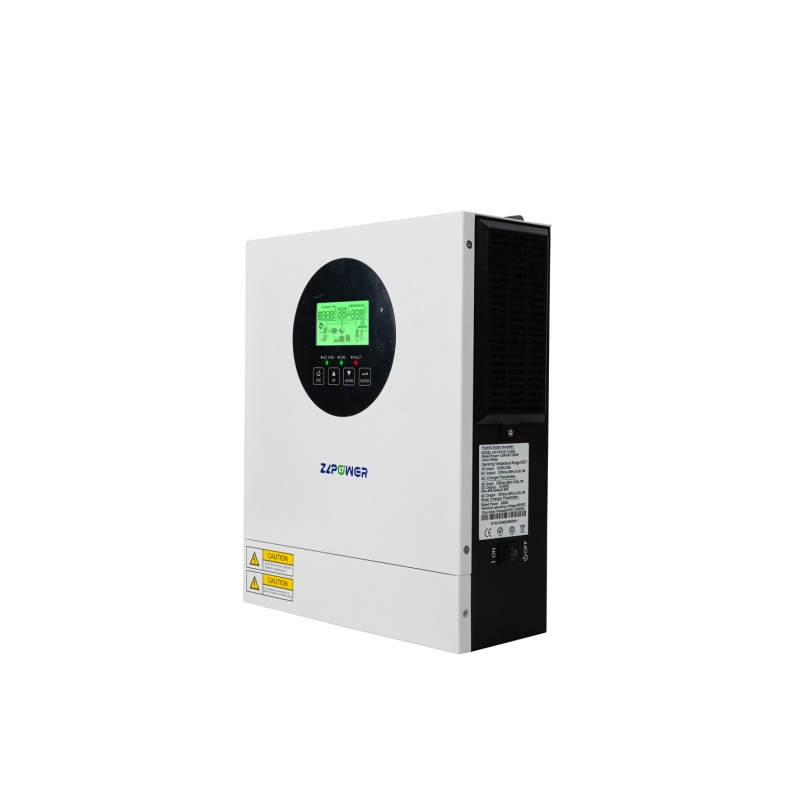

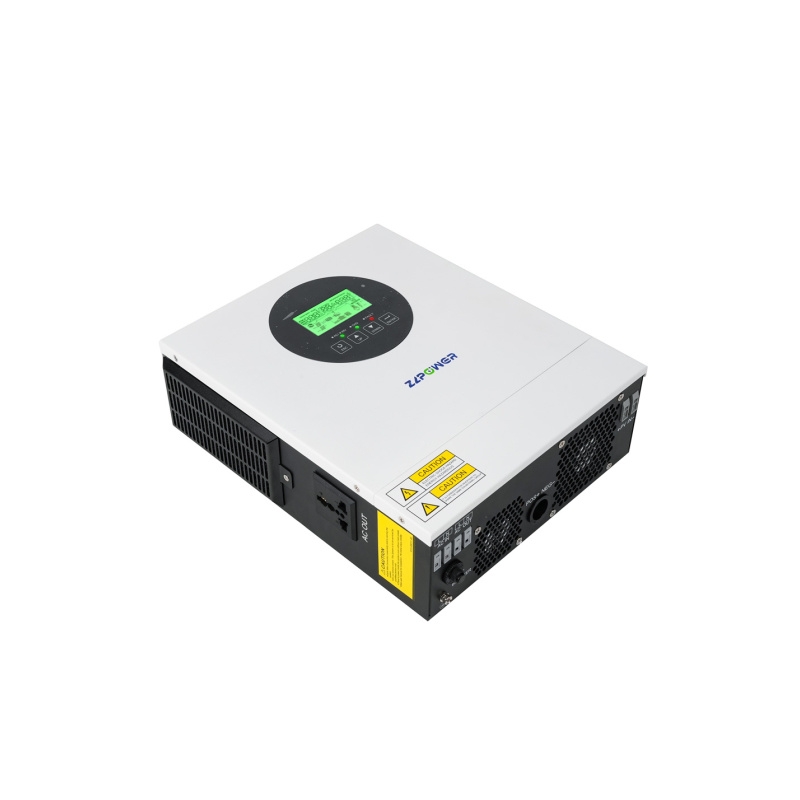

PVN is equipped with the 40A MPPT Solar Charge Controller, which maximizes the DC regulation of the solar array to charge the battery bank. The LCD display provides users with configurable and easy-to-use touch operation.
1.Pure sine wave solar inverter
2.output power factor 0.9
3.Bilt-in 40A MPPT solar charger
4.High PV input voltage range(20-150VDC)
5.Built-in anti-dusk kit for harsh environment
6.Smart battery charge design to optimize battery life
7.meet the rich customize needs of customers
8.Compatibe with lithium battery
9.Solar energy is provided directly to the load first
|
Model |
1000VA/1000W |
|
RATED POWER |
1000VA/1000W |
|
AC Input |
|
|
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|
|
90-280VAC(For Home Appliances) |
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|
AC OUTPUT |
|
|
AC Voltage Regulation |
230VAC+5% |
|
Surge Power |
2000VA |
|
Efficiency(Peak)Pv to INV |
98% |
|
Efficiency(Peak)Battery to INV |
94% |
|
Transfer Time |
10ms(for personal computers);20ms (for home appliances) |
|
BATTERY & AC CHARGER |
|
|
Battery Voltage |
12VDC |
|
Floating Charge Voltage |
13.5VDC |
|
Overcharge Protection |
16VDC |
|
Maximum Ac Charge Current |
40A |
|
SOLAR CHARGER |
|
|
Maximum PV Array Power |
550W(12V) |
|
MPPT Range @ Operating Voltage |
20-150VDC |
|
Maximum PV Array Open Circuit Voltage |
150VDC |
|
Maximum Charging Current |
40A |
|
PHYSICAL |
|
|
Dimension,D*W*H(mm) |
300x235x90 |
|
Cartoon Dimension,D * W *H(mm) |
340x275x145 |
|
Dimensions of mounting holes(mm) |
118-5x2 |
|
Met Weight(kgs) |
3 |
|
Gross Weight(kgs) |
3.5 |
|
Communication interface |
RS232/GPRS/WIFI |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity(Non~condensing) |
|
Operating Temperature |
-10-50℃ |
