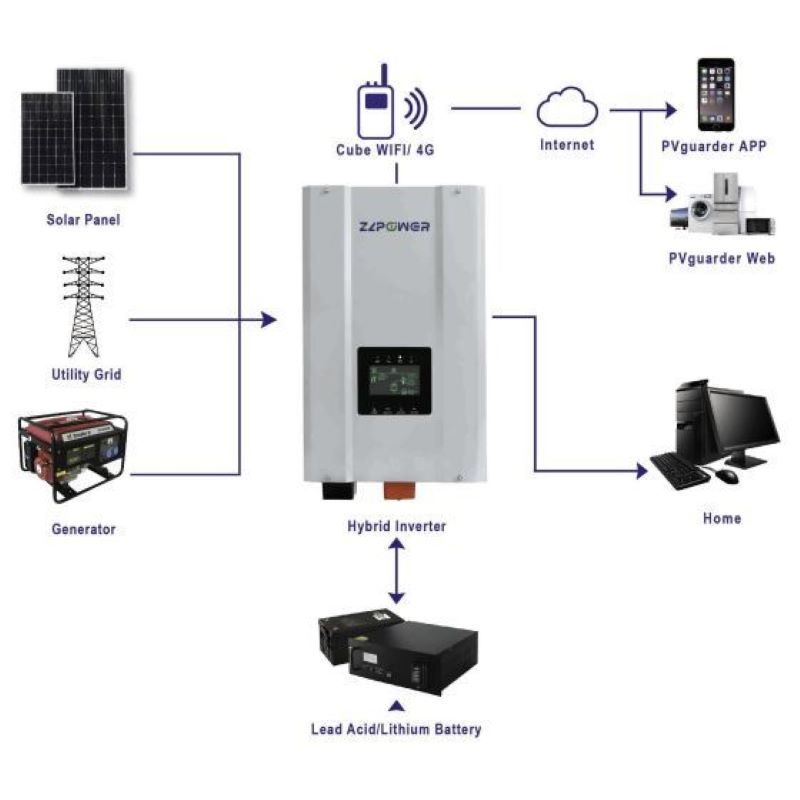

This is a low-voltage hybrid inverter GS series with a capacity of 4kw, 5kw, 6kw. It is suitable for working in various environments (large farms, villas, factories, forest areas, etc.), and can also be applied to common household appliances. This pure sine wave inverter also functions as a solar charger inverter, solar grid inverter, and solar hybrid inverter with MPPT. It features multiple intelligent protection functions, anti-interference capabilities, adjustable voltage, high-precision circuit boards, and pure sine waves. The solar inverter price is competitive, and it can be used as a solar off-grid inverter or a solar power inverter with lithium battery.
♦ GS Series AC/Solar charging Off grid Hybrid lnverter.
♦ LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design.
|
Model |
GS 4000 |
GS 5000 |
GS 6000 |
|
Power Rating |
4000W |
5000W |
6000W |
|
AC Input |
|||
|
Input Voltage Waveform |
Sinusoidal(utility or generator) |
||
|
Nominal input Voltage |
120/230VAC |
||
|
Low Line Disconnect |
85Vac±4%(Normal) or 80Vac±4%(Wide) for 120Vac 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230Vac |
||
|
Low Line Re-connect |
95Vac±4%(Normal) or 85Vac±4% (Wide) for 120Vac 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230Vac |
||
|
High Line Disconnect |
136Vac±4%(Normal) or 145Vac±4%(Wide) for 120Vac263Vac±4%(Normal) or 263Vac±4%(Wide) for 230Vac |
||
|
Max AC input Voltage |
120Vac for Max150Vac, 230Vac for Max270Vac |
||
|
Frequency |
50Hz:41-54Hz,60Hz:51-64Hz |
||
|
AC Charger |
|||
|
Nominal Charge Current |
20A/35A/50A/70A/90A(5 stages adjustable charging current) |
||
|
Over Charge Protection |
Bat.V>15.5VDCfor 12V battery ； Bat.V>31.0VDC for 24V battery, Bat.VN62.0VDC for 48V battery ； beeps 0.5s every 1s & fault after 60s |
||
|
Solar Charger |
|||
|
Rated Charge Current |
60A |
60A |
60A |
|
PV Input Voltage range |
12VDC. 25VDC-75VDC for 24VDC. 55-145VDC for 48V |
||
|
Max.PV open circuit array voltage |
12V for40VDC, 24V for 75VDC, 48V for 145VDC |
||
|
Charger mode |
MPPT |
||
|
PV Low Voltage Re-connect |
PV>Bat.V=3V |
||
|
PV Low Voltage Disconnect |
PVWBat.V |
||
|
Efficiency |
>97% |
||
|
Charger |
|||
|
Nominal Charger Current |
20A/35A/50A/70A/90A(According to the inverter model), 5 stages adjustable charging current |
||
|
Over charge Protection |
Bat.V>15.5VDC/31VDC/62VDC,beeps 0.5s every 1s & fault after 60s |
||
|
Efficiency |
|||
|
Efficiency (Battery Mode ) |
>87% |
||
|
Efficiency (Line Mode) |
>98% |
||
|
Battery Voltage |
|||
|
Nominal DC Input Voltage |
24/48VDC |
||
|
Low Battery Alarm |
10.5VDC±0.3VDC for 12VDC, 21VDC±0.6VDC for 24VDC, 42VDC±1.2VDC for48VDC |
||
|
Low DC input shut-down |
20VDC±0.6VDC for 24VDC, 40VDC±1.2VDC for48VDC |
||
|
High DC input Alarm & Fault |
32VDC±0.6VDC for 24VDC, 64VDC±1.2VDC for48VDC |
||
|
Transfer Time |
|||
|
AC to DC |
20ms(max) |
||
|
DC to AC |
15ms(max) |
||
|
System Parameter |
|||
|
Over-Load Protection |
110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, load>150%, beeps 0.5s every 1 s, and Fault after 20s |
||
|
Output Short Circuit Protection |
Current limit(Fault after 10s) |
||
|
Surge Rating(10s) |
1:3(VA) |
||
|
Power Saver |
Load<25W(Enabled on "P/S auto"Setting of Remote control) |
||
|
Protections |
Low battery.over charging,over load,over temp |
||
|
Indicators |
LED+LCD Display |
||
